In the world of modern industrial construction, MEP BIM modeling has become an essential element that defines the success of the project. Whether you are building a high-tech data center or a massive manufacturing plant, you cannot ignore the complexity of Mechanical, Electrical and Plumbing (MEP) systems.
The use of 2D drawings for planning purposes often leads to expensive mistakes and project delays. This is where Building Information Modeling (BIM) comes to transform complex blueprint designs into detailed digital models.
What is Industrial MEP BIM?
Industrial MEP BIM is a digital 3D model of a building’s essential components, including Mechanical, Electrical and Plumbing systems. The model functions as a “smart map” which displays all components that enable a building to operate, including its electrical network, water distribution system and heating and cooling system.
These 3D models contain multiple data elements that exceed the information found in 2D drawings. It enables users to access information about the pipe’s material, its size and its location and connections to adjacent components. In this way, all project participants can clearly see how the final system would fit together before any construction work begins.
How MEP BIM Modeling Brings Accuracy
Accuracy plays a significant role in constructing a sturdy and fully functional building. In the complex work of building construction, being off even an inch can result in a chain reaction of problems. The following points show how the MEP BIM coordination model helps to maintain accuracy in projects:
The “Single Source of Truth”
In the past, the electrician had one set of drawings and the plumber had another. This often resulted in confusion and misunderstandings. But today, with the help of modern MEP modelling services, all project teams access the same digital model. In these models, if an HVAC engineer moves a duct, this change shows up immediately to all other users. So, the system provides a “single source of truth,” which eliminates all the confusion and guesswork.
Early Clash Detection
Clashes are one of the biggest challenges in construction. A “clash” occurs when any two or more components come in each other’s way. For example, when a water pipe intersects electrical wiring.
With the help of MEP clash detection services, teams can easily identify these errors on their computer before they begin their actual work. The cost of solving problems on a computer screen is extremely low compared to solving them at the construction site with technicians and labor.
Data-Driven Precision
BIM models are constructed with actual measurements from the physical world. The MEP 3D modeling method guarantees that all components, including valves, switches and vents, are positioned with maximum accuracy. Because the model is built with plenty of data, it can automatically calculate if there is any area of improvement, ensuring the entire design meets all industrial standards and safety codes.
Explore how each phase connects in our detailed guide to the MEP BIM modeling workflow – from design through fabrication.

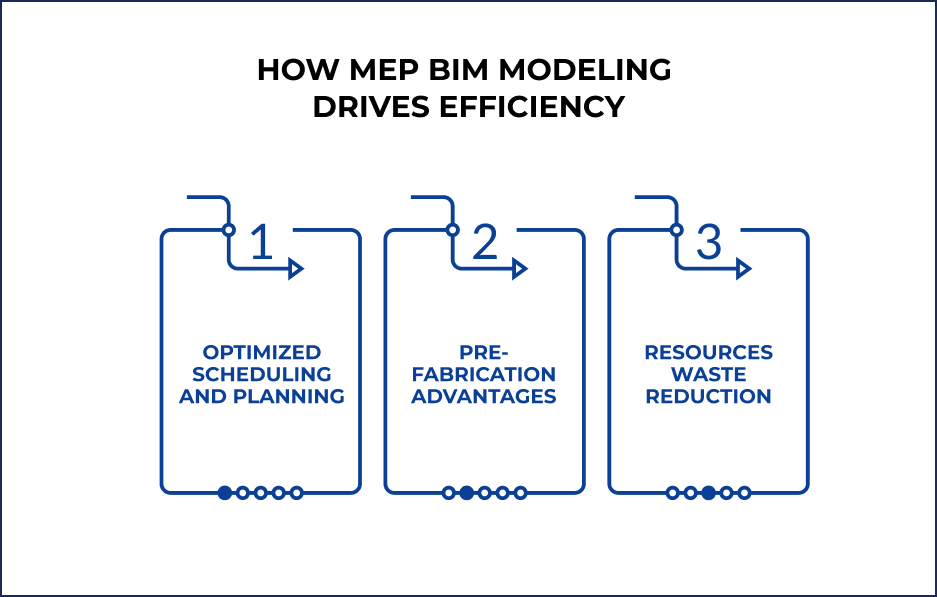

How MEP BIM Modeling Drives Efficiency
Efficiency in construction directly means saving time and money without compromising on quality. BIM simplifies the entire construction lifecycle through several key methods:
Optimized Scheduling and Planning
With the help of 3D MEP BIM modeling, project managers can see every detail of their construction project. This supports better BIM MEP coordination, which ultimately helps teams to know which system they need to install first in order to avoid overcrowding the workspace or other issues. The system enables project work to continue without teams clashing over their work.
Pre-Fabrication Advantages
Because the MEP BIM modeling services are highly accurate, many parts that you need to install in your building can be ‘pre-fabricated’ at a different location. For example, components like pipes and ducts can be cut and assembled in a workshop and then supplied to the construction site for quick installation. A significant amount of time can be saved with this process.
Resources Waste Reduction
Placing an order for too much material results in wastage of money, while ordering insufficient material causes delays. With the MEP BIM modeling services, you can know exactly how much material is required for your project. This precision leads to significant resource waste reduction, which makes the project more budget-friendly and sustainable.
Learn more in our blog How MEP Coordination Services Support Prefabrication and Modular Construction to see how streamlined coordination drives efficient modular workflows.
Long-Term Benefits of MEP BIM Modeling
The value of the MEP BIM modeling doesn’t end even when the construction is completed and the crew has left. The model remains an essential tool for years for the industrial facility owners:
Easy Facility Troubleshooting
If a leak occurs five years later, maintenance teams don’t have to tear down walls to find the source. The 3D MEP coordination model shows them the exact pipe locations that run behind walls and under the floors.
Long-Term Cost Savings
With MEP BIM modeling, owners can also take steps for “preventive maintenance”. The system notifies managers about the due date of machine maintenance service, which prevents expensive emergency breakdowns.
Future-Proofing Your Facility
Industrial facilities require an upgrade or expansion of their technology. Having a complete digital record of their existing MEP systems enables owners to plan and buy new components easily and in a cost-effective way.
Discover how What Contractors Should Expect from Professional MEP BIM Modeling Services can help improve coordination and minimize costly on-site conflicts in your projects.
Why Choose SmartCADD for Your MEP BIM Needs?
When it comes to complex industrial projects, you need a partner who can deliver technical expertise. SmartCADD is a leader in delivering advanced digital solutions for the AEC (Architecture, Engineering and Construction) industry.
Choosing SmartCADD for your MEP BIM coordination services means you are getting a team of experts who give priority to quality and speed. Our company provides a full suite of services, which include HVAC BIM coordination services, MEP clash detection and MEP coordination services.
Our team uses the latest technology to ensure your project is built right the first time. At SmartCADD, we pride ourselves on being more than just a service provider; we are a strategic partner that helps you minimize risks and maximize your ROI.
Conclusion
In today’s industrial world, Building Information Modeling (BIM) has become an essential requirement that companies need to adopt. With the help of MEP BIM modeling, companies can ensure their construction projects are efficient, accurate and built to last. Right from the initial stage of designing to years of facility management, the advantages of BIM are clear.
FAQS
Industrial MEP BIM modeling is the process of creating detailed 3D digital models for mechanical, electrical, and plumbing systems in industrial projects to improve planning, design accuracy, and coordination.
MEP BIM modeling enables precise visualization, real-time updates, and advanced clash detection, helping identify design conflicts early and reducing costly errors during construction.
Industrial projects are complex and involve multiple systems. BIM ensures better coordination, reduces rework, improves communication, and enhances overall project efficiency.
